Battery Swapping Station
All day riding, zero downtime.
Every EV booking hub is equipped with a Zone Battery Swapping Station - so riders never wait to charge, and operators never lose revenue to idle vehicles.
Swap in under 60 seconds
A dead battery doesn't end the ride - it triggers a pit stop. Here's how the swap happens at every Zone booking hub.
Low Battery Alert
Rider gets an in-app alert and is directed to the nearest swap hub.
Arrive at Hub
Navigate to the nearest Zone booking hub with an available charged battery.
Scan & Authenticate
App QR scan verifies the rider and unlocks the swap station compartment.
Swap Battery
Pull out the depleted pack, slide in a fully charged one - done in seconds.
Back on the Road
Ride resumes instantly. Trip log and battery swap event auto-recorded in the app.
Built into every booking hub
Each Zone swap station is connected to the platform - smart, managed, and always ready.
Hot-Swap Design
Tool-free battery replacement - no technician needed. Standardized pack format fits all Zone EV models.
Cloud-Connected Stations
Every station reports battery inventory, charge levels, and usage data to the operator dashboard in real time.
Authenticated Access
QR-based rider authentication prevents unauthorized swaps and ties every transaction to a verified booking.
Battery Health Analytics
Track cycle count, state of charge, and degradation per pack. Retire batteries before they become a problem.
24 / 7 Availability
Stations auto-rotate charging slots to always have a full pack ready. No staff required for routine operations.
Revenue per Swap
Each swap is a billable event - operators set swap fees, the platform handles collection and reporting automatically.
One hub.
Swap, book & go.
Every Zone booking hub combines vehicle pickup, battery swap, and fleet management into a single physical point. Riders arrive, swap, and leave - all tracked on one platform.
- Integrated with booking flow - swap events linked to active trips
- Compact station footprint - fits parking bays, kiosks, and retail spaces
- Solar-ready design for off-grid and low-power locations
- Multi-slot capacity - 4 to 16 batteries per station depending on hub size
Every pack.
Every charge cycle.
Operators manage all swap stations from the Zone dashboard - monitor inventory, set swap pricing, view swap history, and get alerts when stock runs low.
- Live battery inventory per hub - charged, charging, and depleted counts
- Swap history linked to rider accounts and trip records
- Low-inventory alerts and automated restocking recommendations
- Swap fee configuration and revenue reporting per station

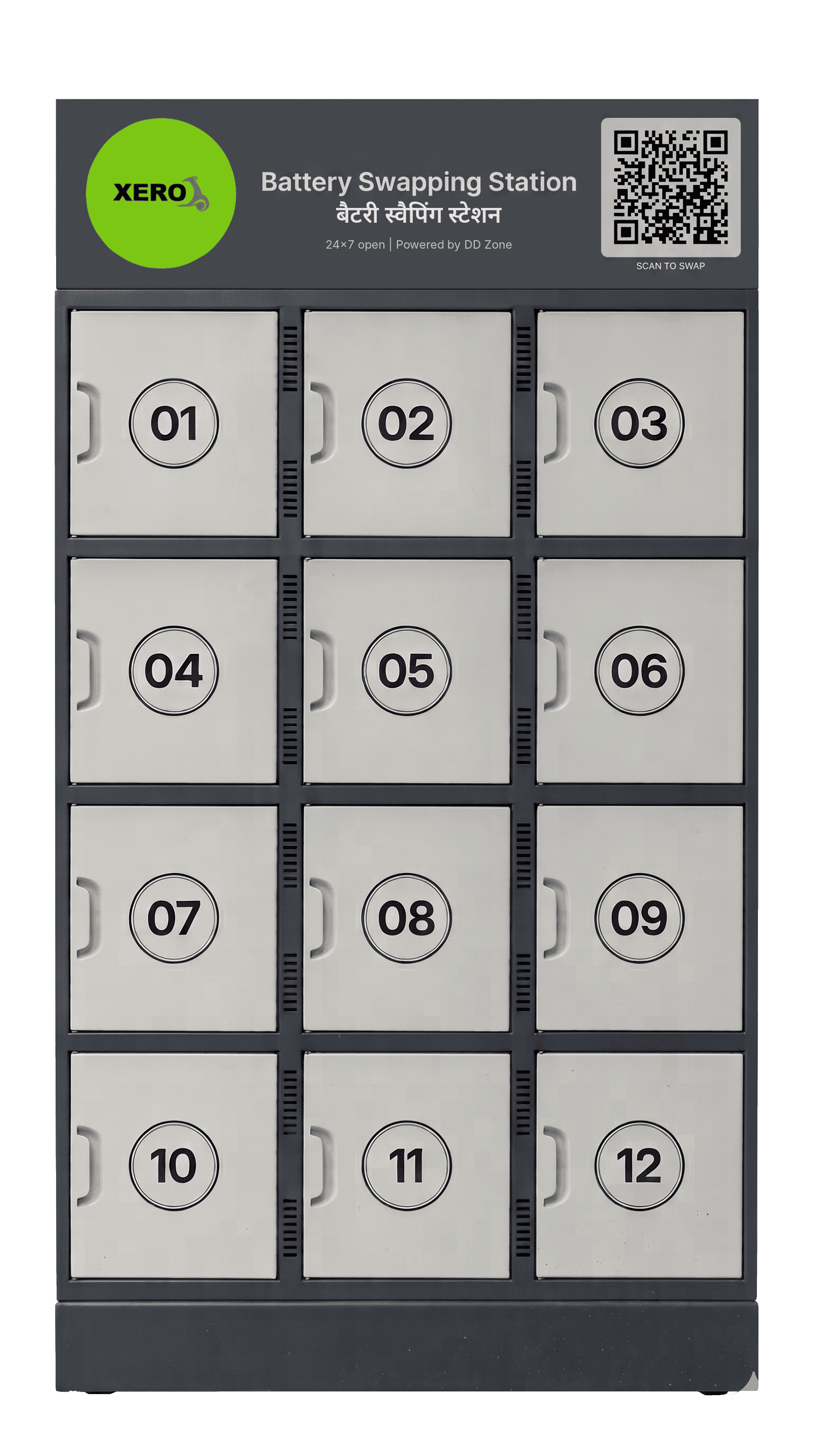

Technical specifications
12kW, 6 / 12-slot battery swapping station with 95% peak efficiency, OCPP 1.6J backend connectivity, and a robust all-weather enclosure for indoor and outdoor use.
General Information
- Input Rating
- 400V AC ±10%, 3-Phase, 50/60Hz, L1+L2+L3+N+PE · 230V AC ±10%, 1-Phase, 50/60Hz, L+N+PE
- Input Current Rating
- 1-Phase AC 50A · 3-Phase AC 30A
- Power Factor
- ≥ 0.98
- Efficiency
- 94% (95% peak)
- Grid Type
- TN-S, TN-C-S, TT
- Output Interface
- 6 / 12 Slots
- Output Power
- 12kW
- Output Voltage
- 40–90V DC
- Output Current
- 25A max.
User Interface
- User Authentication
- App
- Support Language
- English and other regional language
- Media
- Camera, Speaker
Communication
- Network Interface
- 4G, Wi-Fi, Ethernet
- Protocol (BSS & Backend)
- OCPP 1.6J, OCPP 2.0.1 (ongoing)
- Protocol (BSS & Battery)
- BMS
Environmental
- Operating Temperature
- -20℃ ~ +50℃
- Storage Temperature
- -40℃ ~ +70℃
- Humidity
- 5% ~ 95%, no condensation
- Altitude
- ≤ 2000m
Mechanical
- IP Rating
- IP54
- Cooling
- Forced Air
- Dimensions (W×H×D)
- 950 × 1700 × 580mm
- Weight
- Approx. 220kg (excluding batteries)
- Installation
- Ground mounting
Certification & Standards
- Standards & Compliance
- IEC 61851-1, IEC 61851-21-2
- Certification
- CE-RED, CB, ARAI, TCVN, WPC
Keep your fleet on the road
Install a Zone battery swap station at your booking hub and eliminate charging wait times - for good.
